Magnetron, Impulsmagnetron MI-477

Russisches Magnetron, Impulsmagnetron MI-477, russisch МИ-477.
Das Magnetron MI-477, russisch МИ-477, für den Einsatz in Radargeräten.

Impuls-Magnetron MI-477 mit nicht glühender Kathode, Mikrowellenquelle mit 10 kW und 33,6-34,1 GHz. Impulsmagnetron MI-477 mit kleinem Gewicht von 1,6 kg, sofortiger Einsatzbereitschaft (nicht über 0,5 sec) und einer Lebensdauer von mindestens 5000 Stunden.

Pulse magnetron MI-477 is a non-incandescent microwave source with 10 kW output and 33.6-34.1 GHz frequency.
The above mentioned microwave source has the rather small weight – 1.6 kg, and an instant readiness (not over 0.5 sec), due to this non-incandescent magnetron is equipped with the cold cathode, MI-477 has a much longer life time, then the magnetrons with the filament cathodes. Its life span is minimum 5000 hours.

russian magnetron, type MI-477, МИ-477
Technical datas below.

* Frequency, GHz: 33,6-34,1
* Peak Power Output, kW: 8,5 - 10
* frequency Hopping: -
* Anode voltage, kV: 9,5-10,5
* Voltage glow, V: б/н
* Anode current, A: 6-7,5-9
* Heating current, A: б/н
* Time, s: ≤ 0,5
* Duty Cycle: ≥ 2000
* VSWR: ≤ 1,4
* Pulse Width, microseconds: 0,03-1,0
* Durability, h: 5000

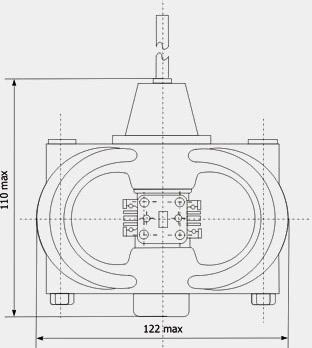

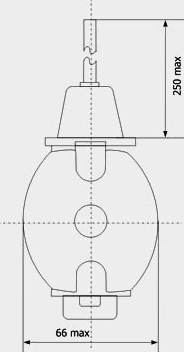

* Overall size, mm: 122 х 66 х 110
* Mass, kg: 1,6

Technische Daten Magnetron MI-477, МИ-477:

Main Parameters

Frequency, GHz	33,6-34,1
Peak Power Output, kW	10
Anode Voltage, kV	9,5-10,5
Cathode heating voltage, V	nicht glühende Kathode

Electric characteristics

Anode Current, amps	7,5
Cathode heating current, amps	nein
Setup time, s	0,5
Pulse Width, microseconds	0,03--1,0
Duty Cycle	0,0005
VSWR, max	1,4

Mechanical characteristics

Lifetime, h	5000
Dimensions, mm	122х66х110
Weight, Kg	1,6
Cooling	conductive
Configuration	packaged
