MIU-49, MIU-50, MIU-51, MIU-52 Verstärkermagnetrone, Amplitron, Magnetron, Platinotron

Art.Nr.: roe-mag-0005a
MIU-49, MIU-50, MIU-51, MIU-52 Verstärkermagnetrone, Amplitron, Magnetron, Platinotron
Magnetron, Amplitron, UMI-200, UMI-201, UMI-202, UMI-203, Äquiv. MIU-49, MIU-50, MIU-51, MIU-52

Preis inkl. MwSt., zzgl. Versandkosten.
MIU-49, MIU-50, MIU-51, MIU-52 Verstärkermagnetrone, Amplitron, Magnetron, Platinotron

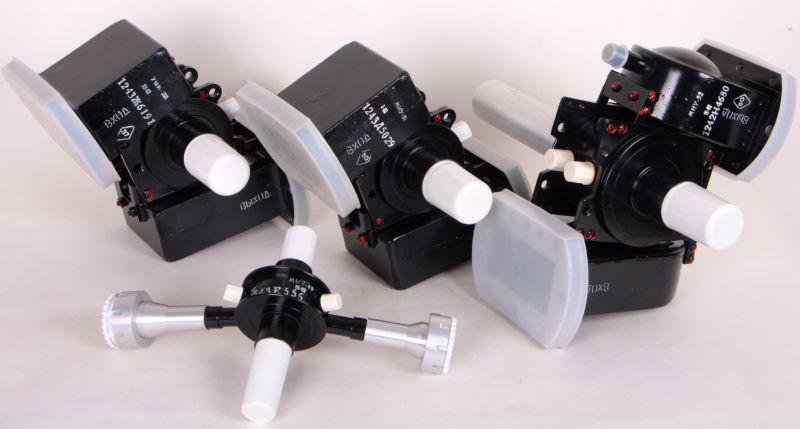

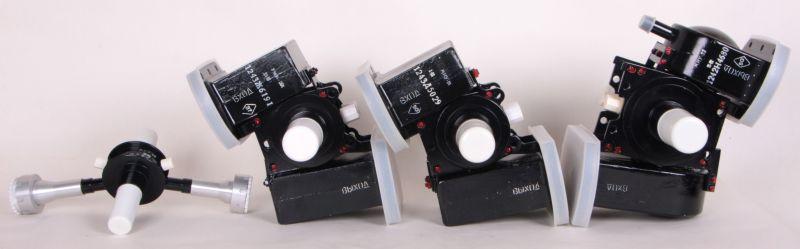

4 Leistungsstufen, 4 Verstärkerstufen, Amplitron, Magnetron, Platinotron, Verstärkermagnetron, Verstärkerimpulsmagnetron , russisch

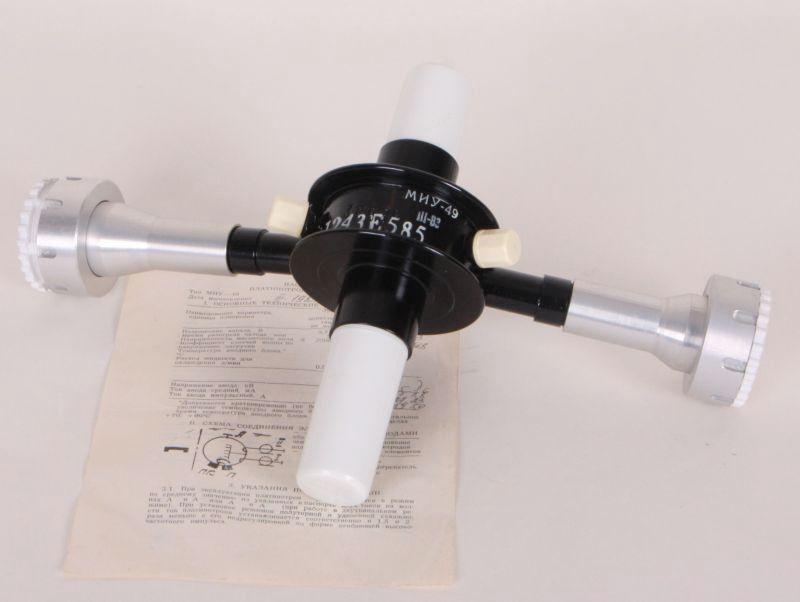

MIU-49 (UMI-200), russ. МИУ-49 (УМИ-200)

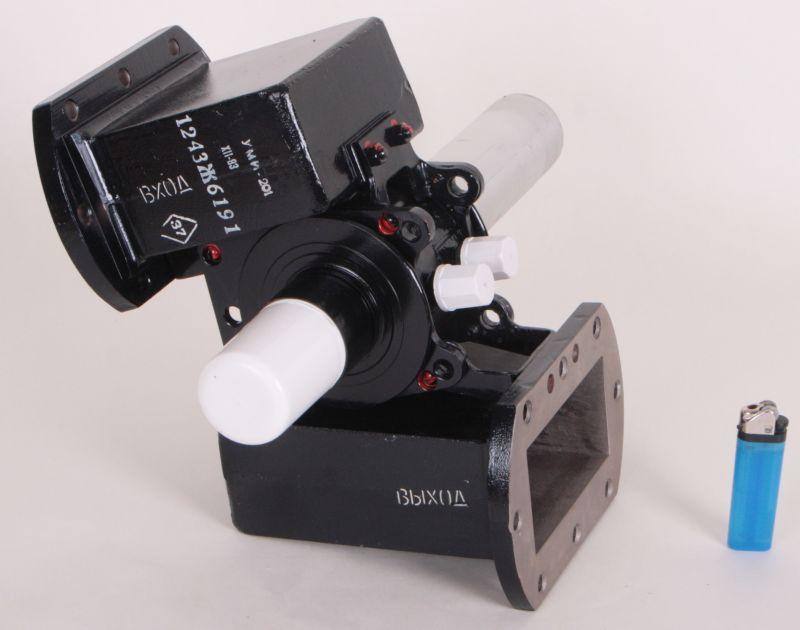

MIU-50 (UMI-201), russ. МИУ-50 (УМИ-201)

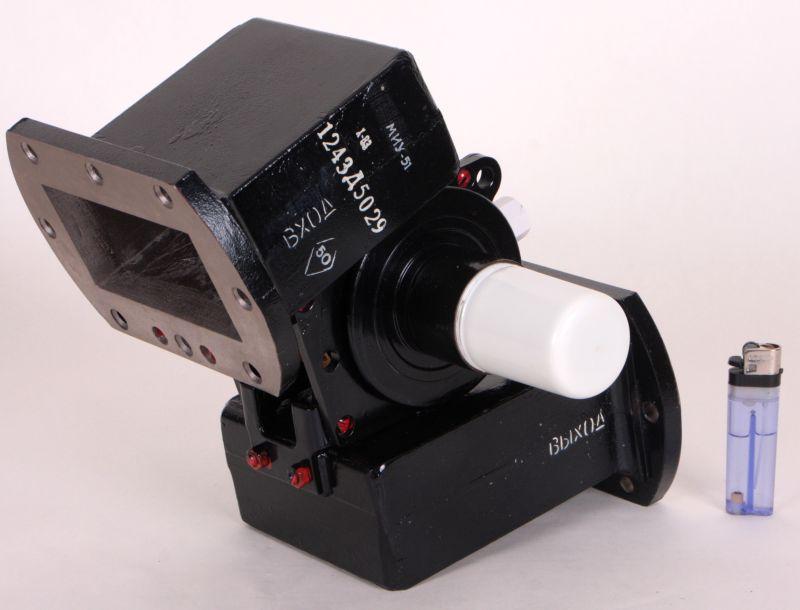

MIU-51 (UMI-202), russ. МИУ-51 (УМИ-202)
MIU-52 (UMI-203), russ. МИУ-52 (УМИ-203)



4 Gepulste Magnetrone in Serienschaltung für breitbandige Verstärkung von Mikrowellenschwingungen im Zentimeter-Bereich.

Platinotron is amplifying pulsed magnetron designed for wide-band amplification of microwave oscillations in centimetre range. It is used in transmitters of mobile ground radars.

* Konstruktion: Glas-Keramik-Metall
* Kühlung: Flüssigkeitszwang
* Power-Input-und Output: Koaxial bzw. Wellenleiter/ Hohlleiter
* Frequenzbereich: 2,12 - 2,34 GHz
* Abmaße LxBxH: versch.


russisches Magnetron, Amplitron, Platinotron MIU-49, MIU-50, MIU-51, MIU-52, russisch МИУ-49 (УМИ-200) МИУ-50 (УМИ-201) МИУ-51 (УМИ-202); МИУ-52 (УМИ-203)

russisches Magnetron, Amplitron, Platinotron MIU-49, MIU-50, MIU-51, MIU-52, russisch МИУ-49 (УМИ-200) МИУ-50 (УМИ-201) МИУ-51 (УМИ-202); МИУ-52 (УМИ-203)







Technische Daten Magnetron, Amplitron, Platinotron MIU-49 (UMI-200):


General characteristics

Frequency range, GHz
2,12-2,34
Pulsed input power, kW
2,0
Pulsed output power, kW, no less than
20,0
Efficiency, %, no less than
30,0
Duty cycle
- in 2-channel regime
190-250
- in double duty cycle regime
380-500
Pulse duration, mcs
5,6-6,4
Anode voltage, kV
13,5
Pulsed anode current, A
8,0
Weight, kg
2,0

russisches Magnetron, Amplitron, Platinotron MIU-49, MIU-50, MIU-51, MIU-52, russisch МИУ-49 (УМИ-200) МИУ-50 (УМИ-201) МИУ-51 (УМИ-202); МИУ-52 (УМИ-203)





Technische Daten Magnetron, Amplitron, Platinotron MIU-50, (UMI-201):


TYPE UMI-201
Frequency range,GHz 2.12-2.34
Peak input power, kW 14
Peak output power, kW, no less than 140
Efficiency, %, no less than 22
Duty cycle in 2-channels regime 230-280
Duty cycle in double duty-cycle regime 460-560
Pulse duration, mcs 4.8-5.6
Anode voltage, kV 19.5
Pulsed anode current, A 40
Weight, kg 10

russisches Magnetron, Amplitron, Platinotron MIU-49, MIU-50, MIU-51, MIU-52, russisch МИУ-49 (УМИ-200) МИУ-50 (УМИ-201) МИУ-51 (УМИ-202); МИУ-52 (УМИ-203)





Technische Daten Magnetron, Amplitron, Platinotron MIU-51 (UMI-202):


TYPE MIU-51
Frequency range,GHz 2.12-2.34
Peak input power, kW 100
Peak output power, kW, no less than 580
Efficiency, %, no less than 40
Duty cycle in 2-channels regime 290-360
Duty cycle in double duty-cycle regime 580-720
Pulse duration, mcs 3.8-4.2
Anode voltage, kV 20-27
Pulsed anode current, A 50
Weight, kg 10

russisches Magnetron, Amplitron, Platinotron MIU-49, MIU-50, MIU-51, MIU-52, russisch МИУ-49 (УМИ-200) МИУ-50 (УМИ-201) МИУ-51 (УМИ-202); МИУ-52 (УМИ-203)





Technische Daten Magnetron, Amplitron, Platinotron MIU-52 (UMI-203):


TYPE MIU-52
Frequency range,GHz 2.12-2.34
Peak input power, kW 350
Peak output power, kW, no less than 1700
Efficiency, %, no less than 50
Duty cycle in 2-channels regime 380-470
Duty cycle in double duty-cycle regime 760-940
Pulse duration, mcs 2.8-3.2
Anode voltage, kV 38-49
Pulsed anode current, A 85
Weight, kg 12

russisches Magnetron, Amplitron, Platinotron MIU-49, MIU-50, MIU-51, MIU-52, russisch МИУ-49 (УМИ-200) МИУ-50 (УМИ-201) МИУ-51 (УМИ-202); МИУ-52 (УМИ-203)








fliesstextliste_roehren_ostron_kpl Stage 1 - UVI-400, UVI-48, UVI-46
Stage 2 - UMI-200, MIU-45
Stage 3 - UMI-201, MIU-50
Stage 4 - UMI-202, MIU-47
Stage 5 - UMI-203, MIU-48 or MIU-52
